glass shade clear
light: directed downwards, diffused all around
glass shade blue
light: directed downwards, diffused all around
glass shade brown
light: directed downwards, diffused all around
Pendant light
DRAFTSuspension
DRAFT Suspension combines the archetypal form of the globe luminaire with contemporary lighting technology and flexible suspension options. The transparent glass globe, conical internal reflector and balanced light distribution give the luminaire its distinctive presence within the space.
- LUMINAIRE FAMILY
- DRAFT
- LUMINAIRE TYPES
- DESIGN
- da Costa & Wolf

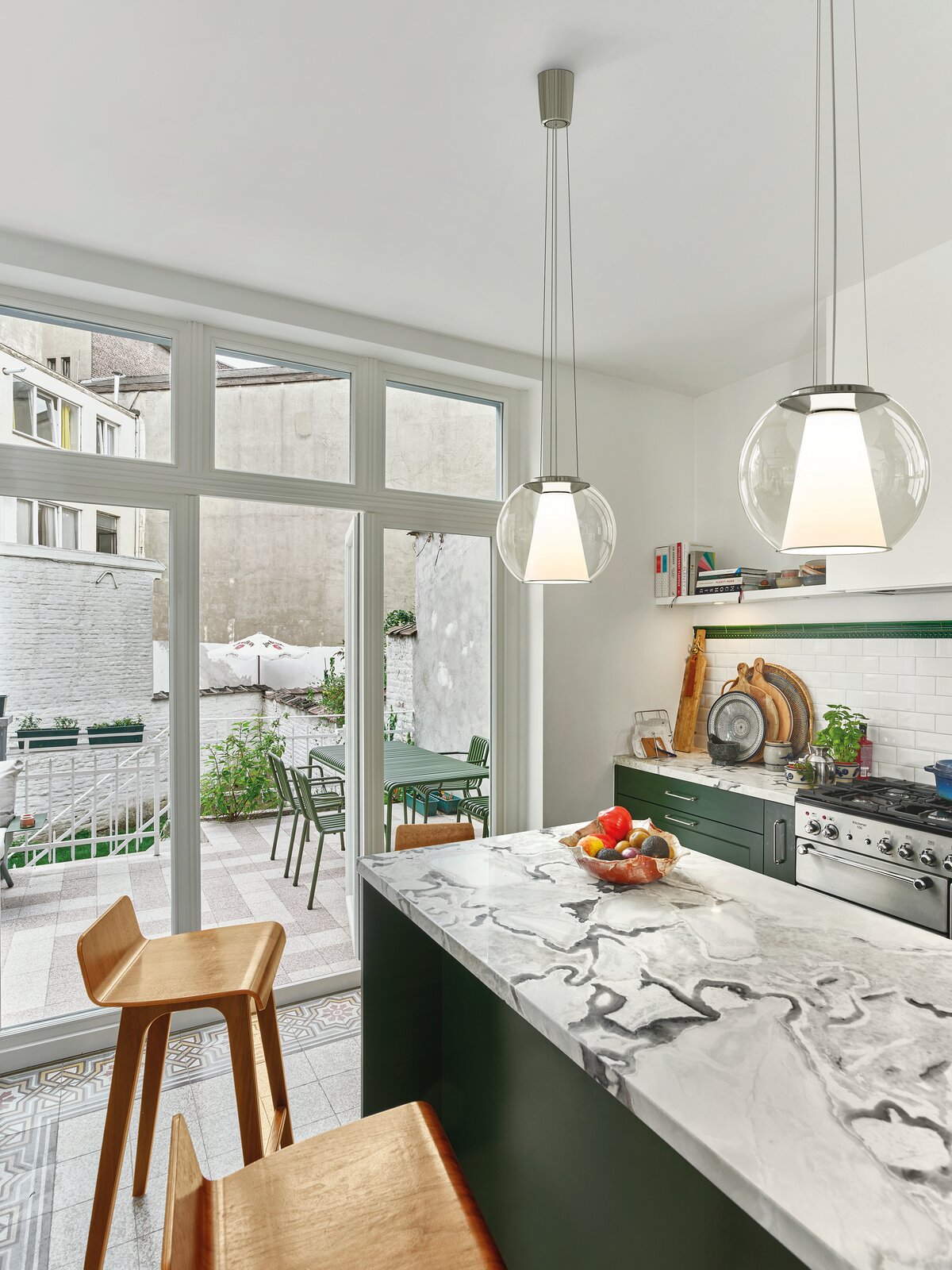

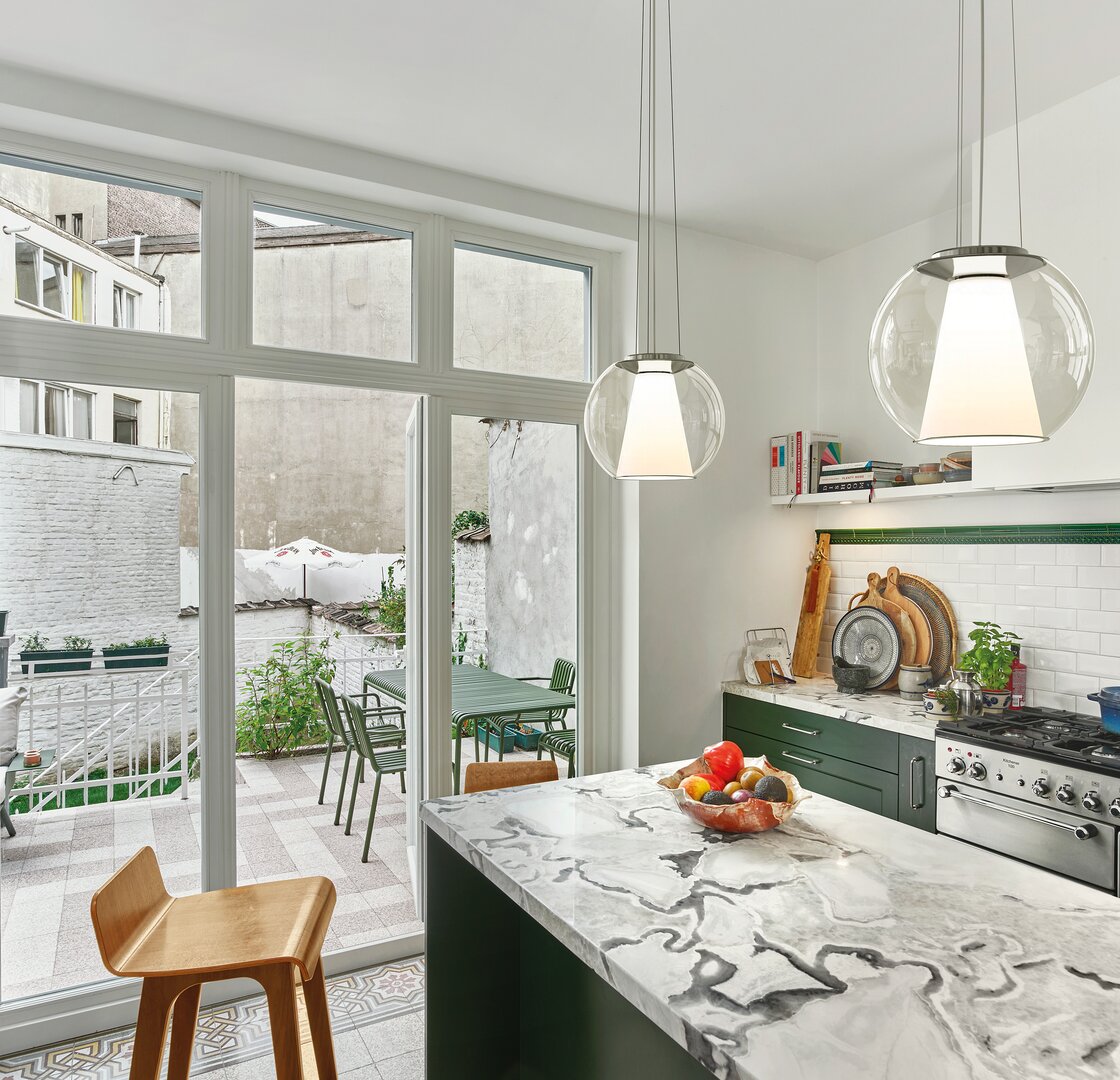

A staggered arrangement of DRAFT Suspension luminaires creates an attractive lighting cluster in residential interiors, above dining tables, in stairwells or in foyer spaces.
Spatial presence
With its partially cut-away, open globe form, DRAFT Suspension appears both understated and distinctive. The luminaire is equally suited to use as a single statement piece or as part of larger clustered installations.
Above tables, in lounges and entrance spaces

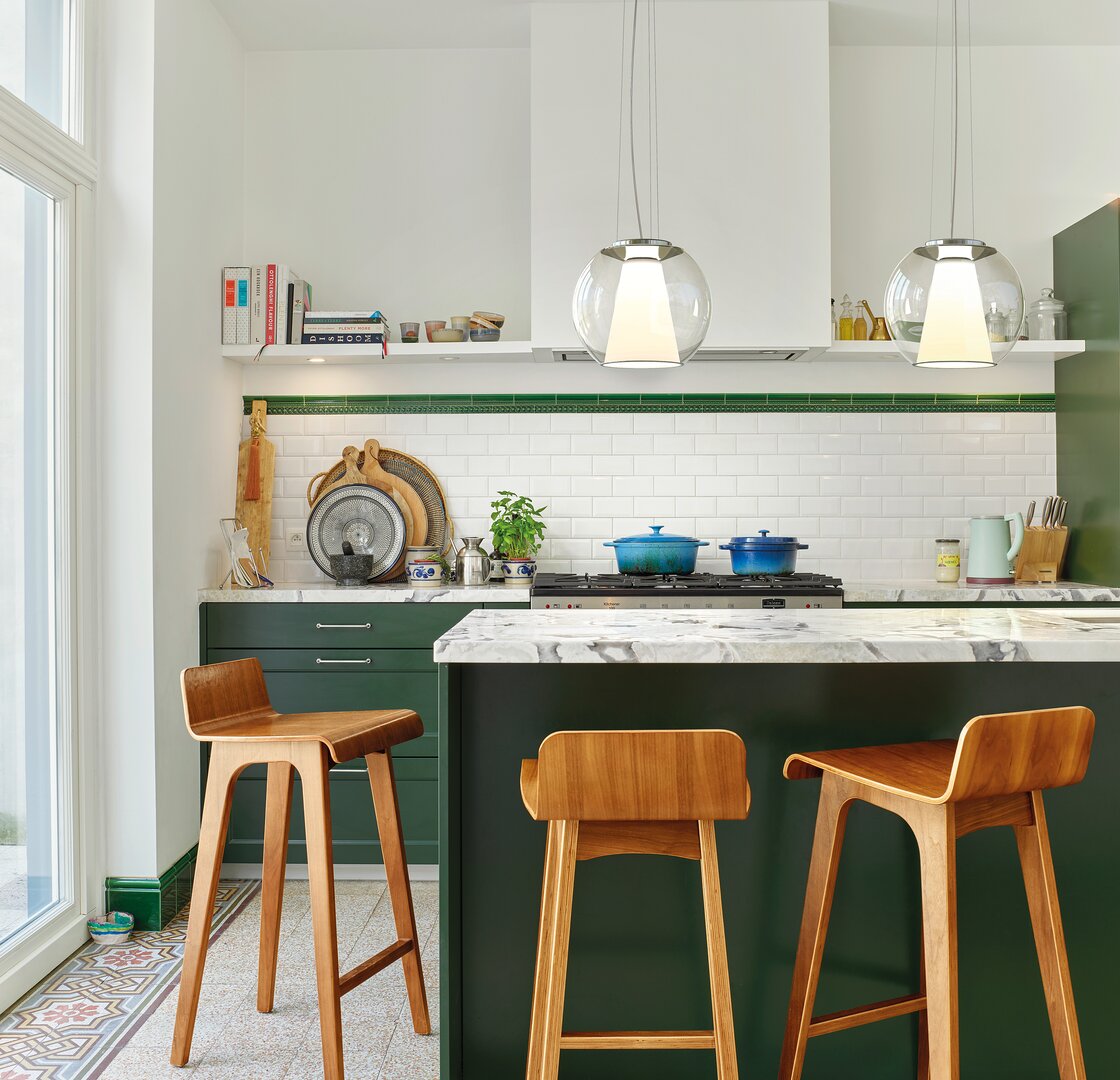

DRAFT Suspension is particularly effective above tables, in lounge areas and in open stairwells and entrance spaces, where its sculptural presence enhances the surrounding architecture.
Hand-blown glass in three colours
The transparent glass globe of DRAFT Suspension is available in clear, transparent blue and transparent brown.
Different sizes with diameters of 21 cm (XS), 24 cm (S) and 36 cm (M) provide additional possibilities for variation within an installation.
Rope or Tube – your choice
DRAFT Suspension is available with either a tool-free adjustable steel cable suspension (Rope) or a classic tube suspension (Tube).
Precise light distribution without glare
The LED light source, positioned deep within the reflector of DRAFT Suspension, creates softly diffused, glare-free ambient light together with directed light below the luminaire. A diffuser disc closes off the luminaire at the bottom and ensures homogeneous illuminated surfaces and a high level of visual comfort.
DRAFT Suspension M
2700 K
UGR ≤ 15,5
Ra > 97 R9>80
1810 lm Lichtstrom
Dim2Warm for residential lighting atmospheres
DRAFT Suspension is available with different colour temperatures and optionally with a Dim2Warm function, supporting a variety of lighting moods.
One, two or many
Staggered arrangements of DRAFT Suspension luminaires create distinctive lighting compositions and are particularly suited to lounges, spacious rooms and open-plan interiors.
No cable swag required
For multiple arrangements of two or three DRAFT Suspension luminaires in size S or M, a canopy profile allows up to three luminaires to be installed easily from a single ceiling power outlet.
Flexible suspension options for different spatial characters
Two suspension options are available:
Rope – the steel cable suspension is tool-free adjustable, allows for greater suspension lengths and enables precise positioning of the luminaire within the space.
Tube – the rigid tube suspension creates a clear architectural appearance and can easily be shortened on site to the required length.
Both versions integrate naturally into a wide range of ceiling heights and planning situations.
DRAFT Suspension Rope
with steel cable suspension can be suspended at any desired height between 150 and 195 cm.
Its continuous steel cable allows tool-free levelling and precise alignment.
DRAFT Suspension Tube
with rigid tube suspension is supplied with a suspension length of 110 cm.
The tube can easily be shortened on site.
Maintenance-friendly features:
The LED unit is replaceable, ensuring long-term use. The dust-proof glass body can be washed in the dishwasher if required. Thanks to the bayonet fitting, the shade can be fitted or removed without the need for tools.
It's really simple, promise:
The steel cable suspension system from DRAFT Suspension Rope can be adjusted without any fiddly adjustments and without the need for tools.
Suspension Rope S
Suspension Rope M
Suspension Tube S
Suspension Tube M
Sizes
- S / M
Versions
- klar
- Aluminium poliert
- braun
- blau
light engine
-
Polished aluminium
shade
-
hand-blown, brilliant clear glass
-
hand-blown, brilliant clear glass, blue
-
hand-blown, brilliant clear glass, brown
reflector
-
shatterproof, durable synthetic glass (acrylic) in an opal finish
Light Color
- 2700 K
- 3000 K
- DIM2WARM 1800-3000 K
- 4000 K
Color Rendering Index
- Ra >97
Voltage
- 230 V
Control
- Phase Dimming (TRIAC)
- CASAMBI
- DALI
Power
- 11 W, 27 W
Protection Type
- IP20
Protection Class
- I
through-wiring - wiring space and electrical terminals prepared for series connections
Optional use in emergency lighting systems
Integration of a battery - for emergency lighting systems optional
pendant tube can be shortened – easy installation and height adjustment using standard tools

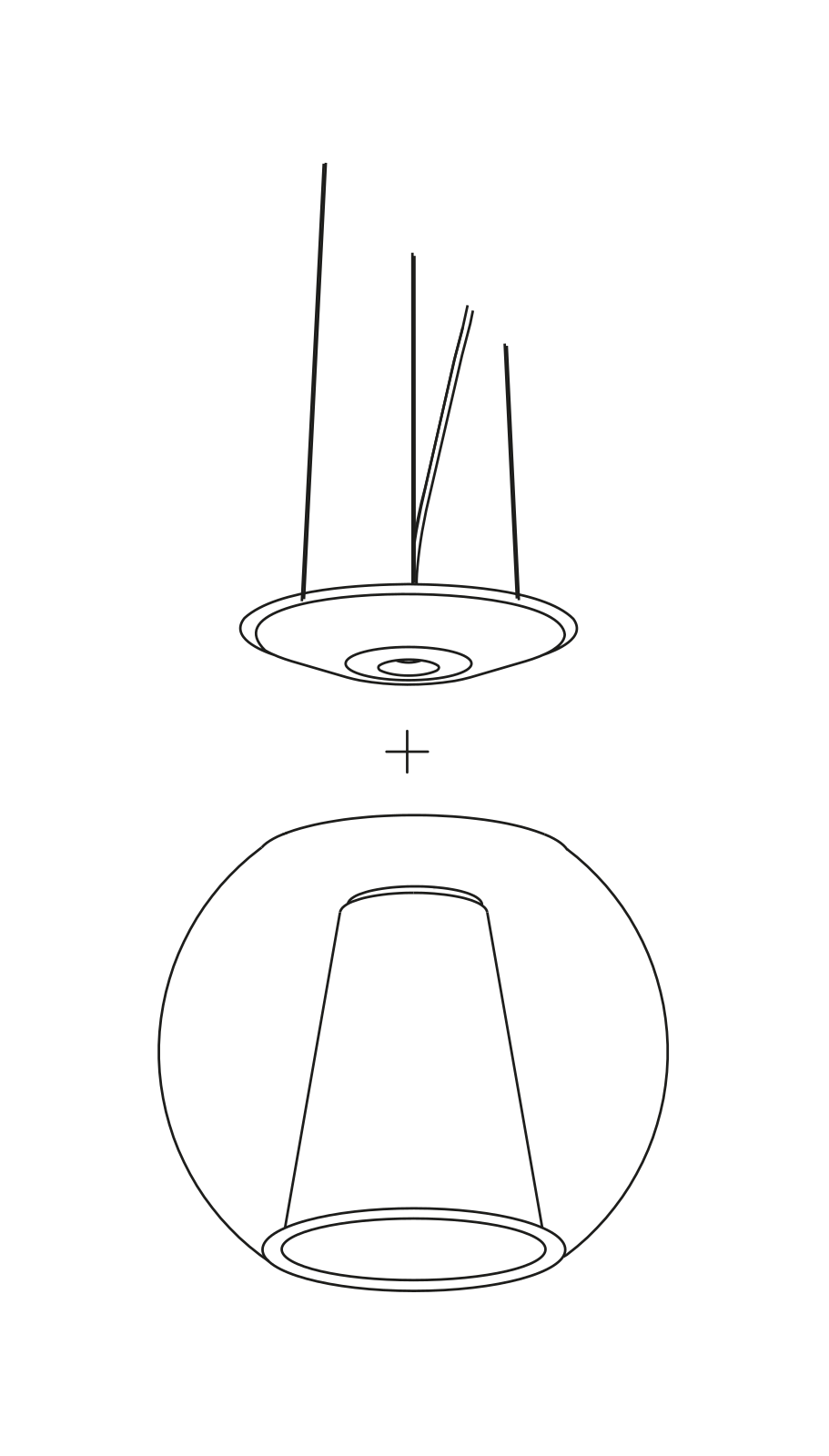

modular product – a system consisting of several functional units (light unit and lampshade) that can be flexibly configured to build the complete luminaire
extra lengths - available for particularly high rooms
Custom Solutions E, F, G
Ecodesign and Energy Labelling
-
Light source can be replaced by qualified technicians
-
Control unit can be replaced by qualified technicians
Owner's Manual
DRAFT Suspension Variants
| Model | Control | Connected load | CCT | Art. no. | |
|---|---|---|---|---|---|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
TRIAC |
11 W |
2700 K |
DR015728 LE015704 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
CASAMBI |
11 W |
2700 K |
DR015728 LE015704C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
TRIAC |
11 W |
3000 K |
DR015728 LE015705 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
TRIAC |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015706 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
TRIAC |
11 W |
2700 K |
DR015728 LE015707 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
TRIAC |
11 W |
3000 K |
DR015728 LE015708 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
TRIAC |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015709 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
DALI |
11 W |
2700 K |
DR015728 LE015735 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
DALI |
11 W |
3000 K |
DR015728 LE015736 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
CASAMBI |
11 W |
3000 K |
DR015728 LE015736C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
DALI |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015737 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
CASAMBI |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015737C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
TRIAC |
11 W |
4000 K |
DR015728 LE015738 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
CASAMBI |
11 W |
4000 K |
DR015728 LE015738C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
DALI |
11 W |
4000 K |
DR015728 LE015739 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
DALI |
11 W |
2700 K |
DR015728 LE015740 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
CASAMBI |
11 W |
2700 K |
DR015728 LE015740C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
DALI |
11 W |
3000 K |
DR015728 LE015741 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
CASAMBI |
11 W |
3000 K |
DR015728 LE015741C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
DALI |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015742 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
CASAMBI |
11 W |
DIM2WARM 1800-3000 K |
DR015728 LE015742C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
TRIAC |
11 W |
4000 K |
DR015728 LE015743 |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
CASAMBI |
11 W |
4000 K |
DR015728 LE015743C |
|
|
DRAFT Ceiling/Suspension SGlas klar mit Reflektor LIGHT ENGINE Suspension Tube Spoliert |
DALI |
11 W |
4000 K |
DR015728 LE015744 |
|
DRAFT Ceiling/Suspension SGlas braun mit Reflektor LIGHT ENGINE Suspension Rope Spoliert |
TRIAC |
11 W |
2700 K |
DR015729 LE015704 |
