REFLEX²
Discreet framework.
Intensive light.
REFLEX² Wall reduces the design language of the product family to the essentials and completes it with an extremely slim wall luminaire. As an uplight, REFLEX² Wall picks up on the principle of indirect lighting, emitting intense, soft light into the room via the ceiling and wall, thus providing absolutely glare-free light for offices, private rooms and more extensive projects.
Design
Jean-Marc da Costa
Awards
ICONIC AWARDS 2024
Interior Innovation - Best of Best
Varianten
black
12W, dimmable
white
12W, dimmable
product details

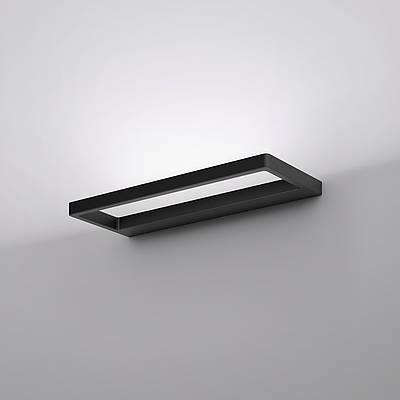

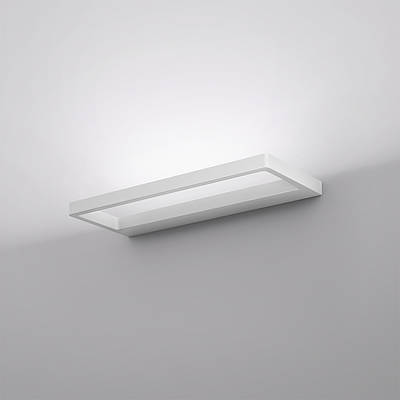

- LED wall light
- extremely flat design (18 mm)
- integrated control gear
- dimmable (TRIAC)
- wall cover for covering junction boxes, for example
- can be mounted as an uplight and downlight
surfaces
black
RAL 9005, powder coating matt
white
RAL 9010, powder coating matt
materials
housing
aluminium housing with excellent thermal properties for optimal heat heat dissipation of the LED
optics
- satin-finished white glass on one side with high light transmission
- true-color light rendition
- insensitive to cleaning agents, antistatic
excellent light quality
2700K or 3000K
CRI ≥ 95
excellent color reproduction quality
3 SDCM
MacAdam Step 3
very high color consistency - minimal color temperature differences
technical notes
levelling the luminaire on the wall
the perfect solution for every wall
If the wall surface is irregular or the position of the supply lines is unfavourable, suitable wall covers help to achieve perfect results.
filigree and bright
With a height of only 18 mm, REFLEX² Wall is one of the slimmest wall luminaires around - and yet produces up to 1200 lumen.
Finely rounded and universally applicable

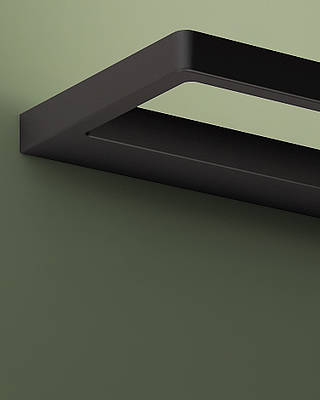

With its slightly rounded corners, the aluminium luminaire is suitable for almost any interior.
productfamily
3D DWG-Data
| REFLEX² DWG | ZIP | 20 MB |
Data sheets
| data sheet REFLEX² Wall M | 737 KB |
Owner's Manual
| REFLEX² Wall M | 425 KB | |
| REFLEX² Wall M Adapter | 80 KB |
Photometric Data
| REFLEX² Wall | ZIP | 3 KB |
