Ceiling light

REFLEX²Ceiling

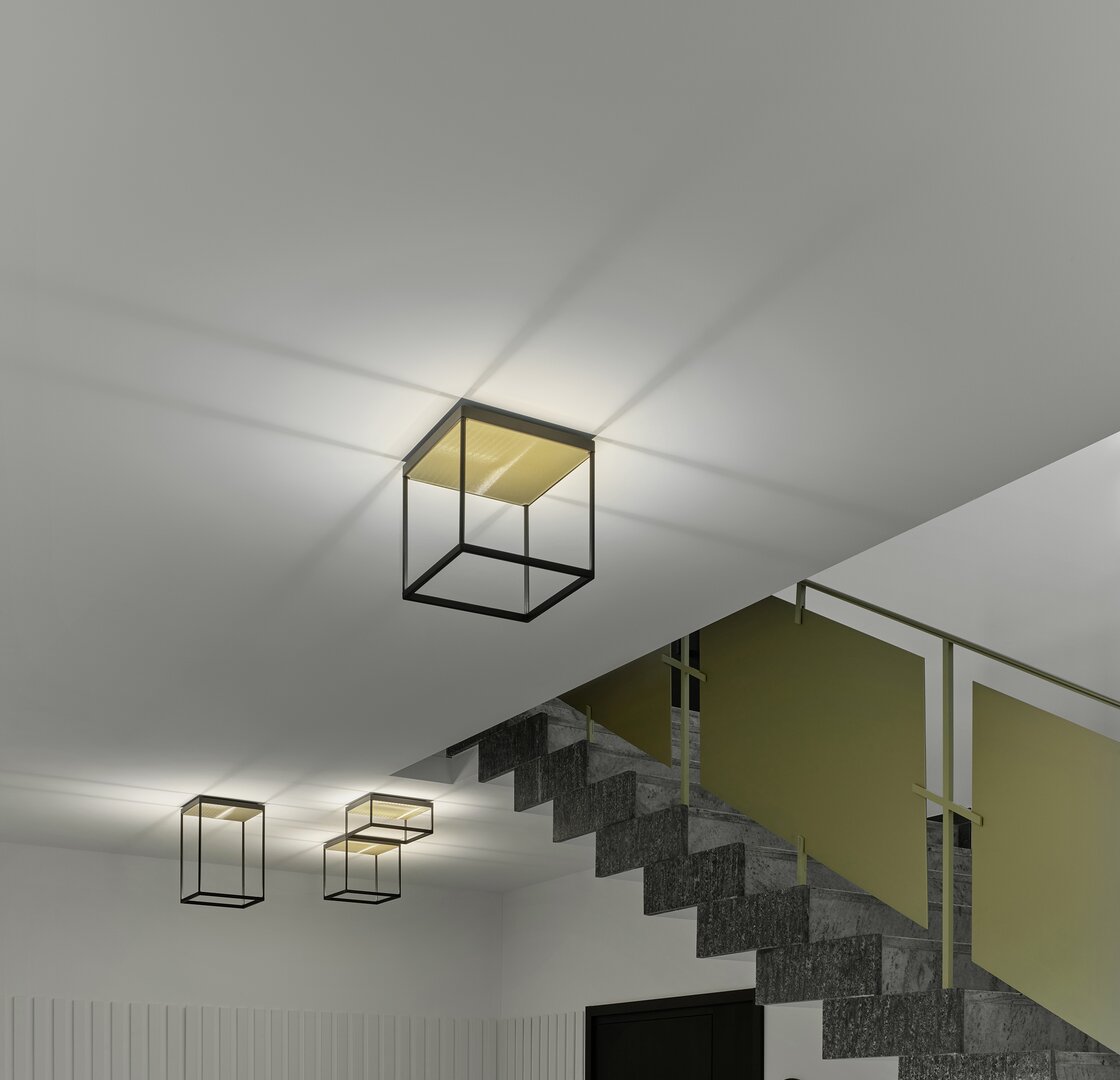

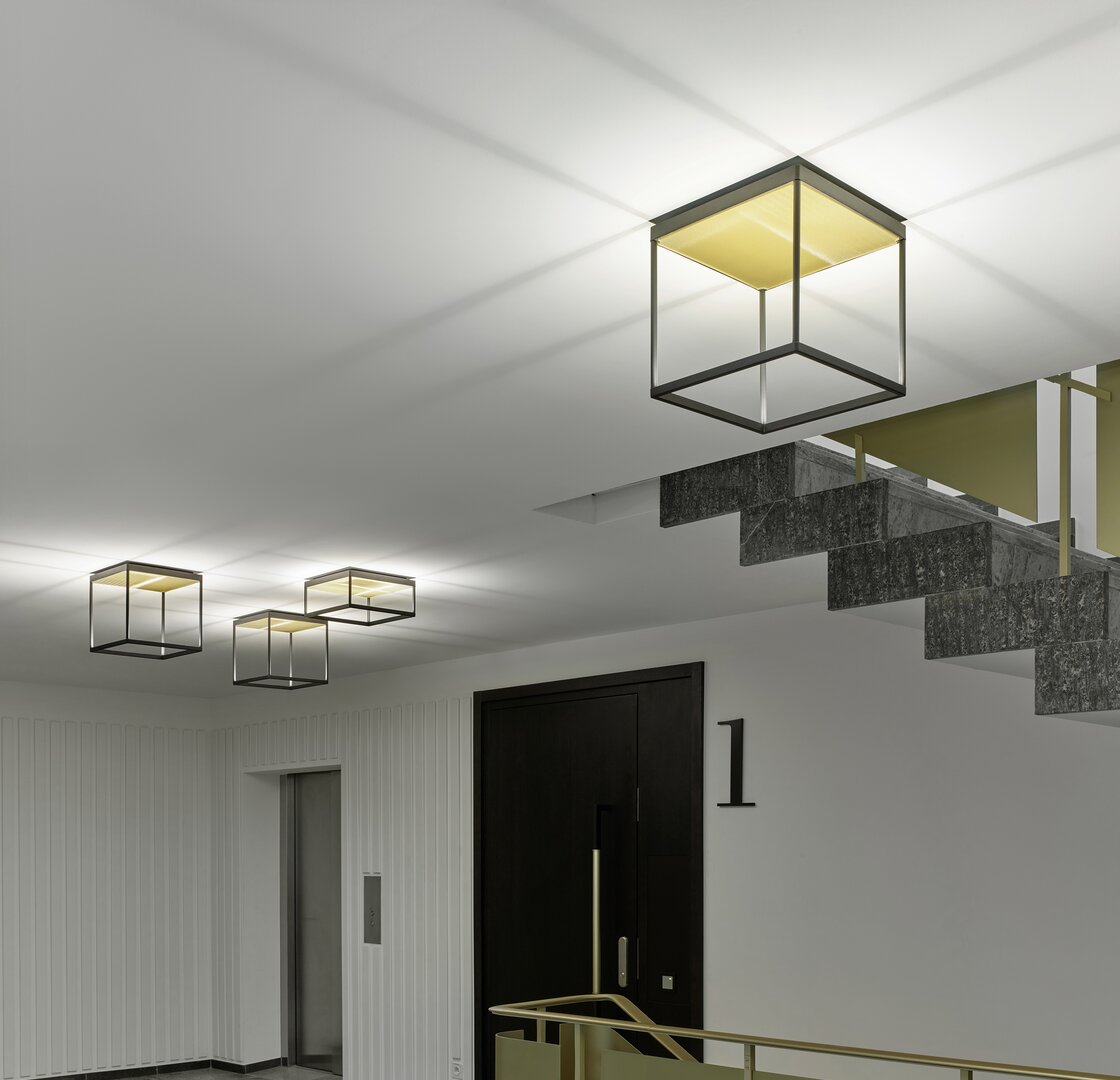

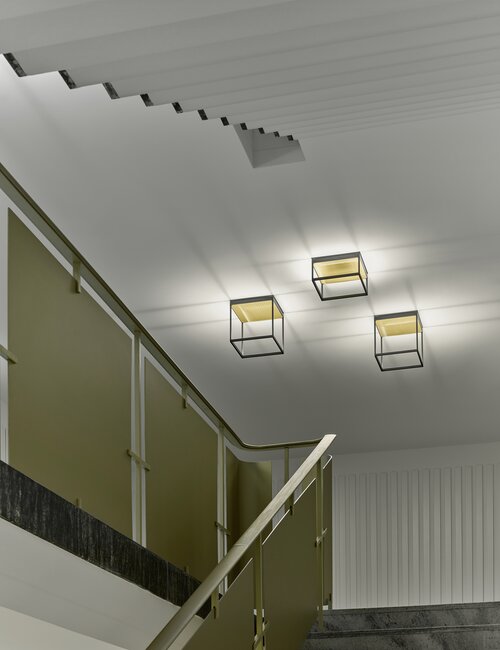

REFLEX² Ceiling directs the light onto a reflector surface and the ceiling. From there, it is reflected indirectly and evenly into the space. The open frame structure appears precise and reduced, while the LED boards remain invisibly integrated. Even at high light output, the luminaire remains completely glare-free.

LUMINAIRE FAMILY
REFLEX²
LUMINAIRE TYPES
DESIGN
Jean-Marc da Costa
AWARDS

The open frame structure of REFLEX² appears precise and reduced.

Reflector
pyramid structure white

Reflector
pyramid structure silver

Reflector
pyramid structure gold

Reflector
matte white

Indirect, glare-free lighting effect

Reflection via the reflector surface and ceiling creates uniform, calm ambient illumination. Different reflector finishes – white, silver, gold or matte – influence both the character and atmosphere of the light. This allows a variety of lighting moods to be created while maintaining a consistently high level of visual comfort.

Intense lighting atmospheres emerge from a subtle structure.

Proven in numerous projects

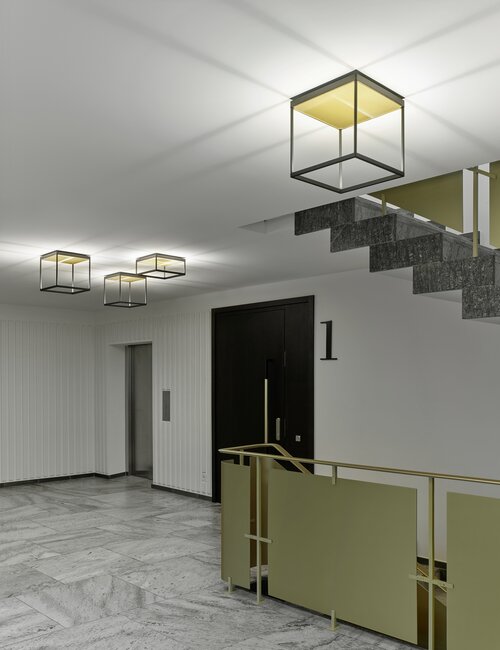

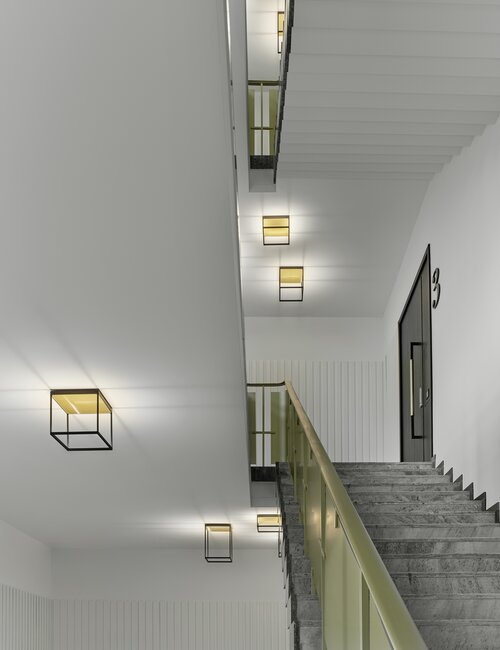

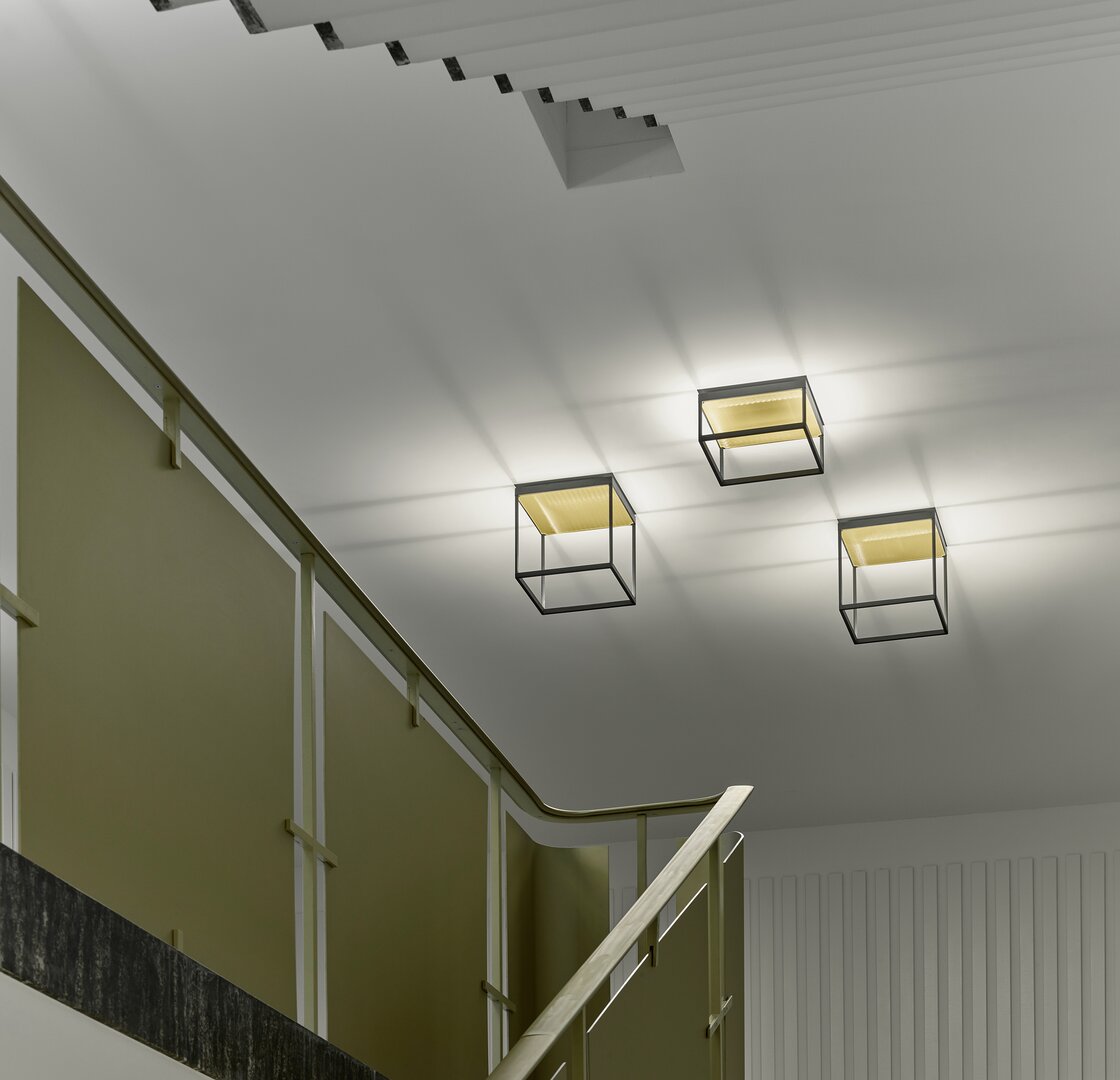

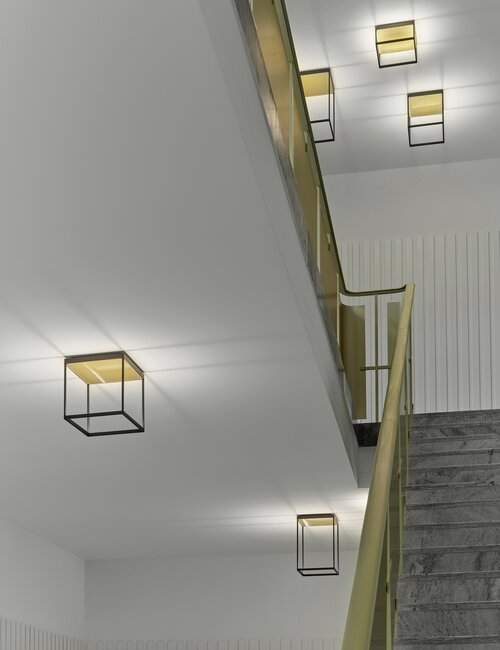

REFLEX² Ceiling is used worldwide in office buildings, educational facilities, public institutions and high-end residential projects. Its lighting effect remains convincing regardless of ceiling colour or surface finish.

The openly articulated frame structure appears precise and architecturally defined – technically reduced, yet spatially impactful.

New XL size

With the addition of the XL size, REFLEX² Ceiling extends its architectural range. Larger ceiling heights and more expansive spaces can now be illuminated in balanced proportions without altering the luminaire's clear design concept.

new
new

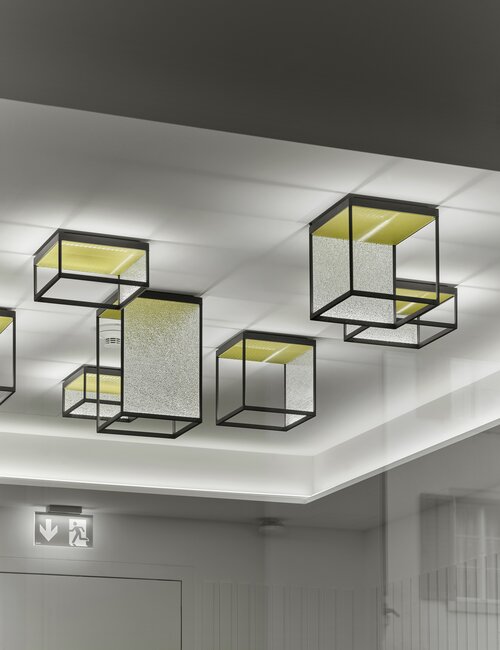

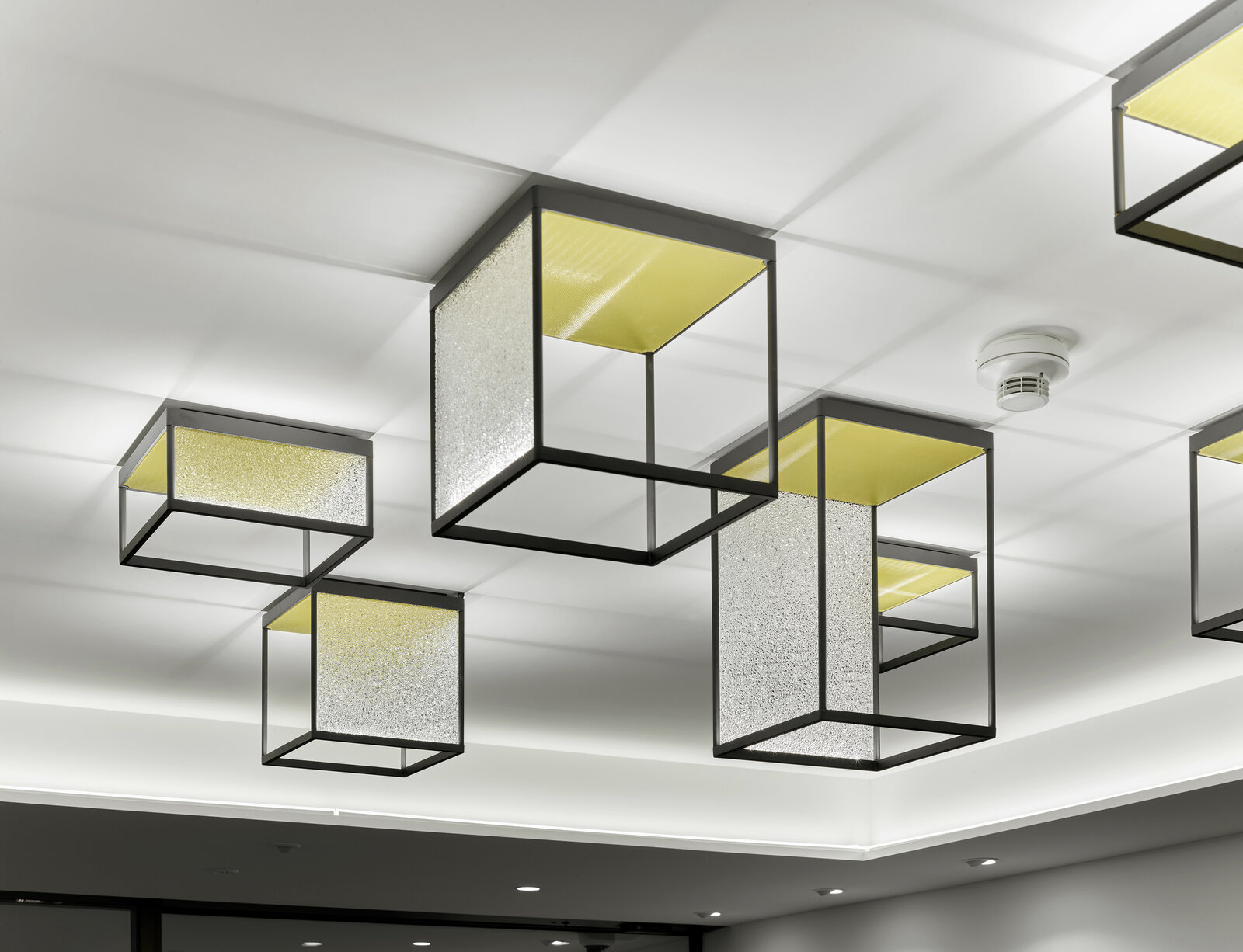

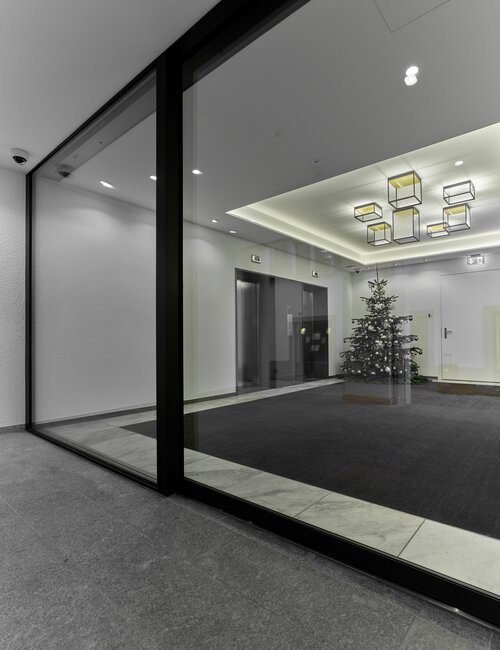

Delicate yet distinctive: REFLEX² Ceiling Cascade

From an almost limitless range of possible configurations, REFLEX² Ceiling Cascade creates an individual composition with layered depth, a clear rhythm and REFLEX²'s refined interplay of light and shadow.

REFLEX² Ceiling Cascades are luminous sculptures for sophisticated spaces – powerful, versatile and architecturally precise.

REFLEX² Ceiling Cascade combines two or three REFLEX² luminaires of any length into a single individually configured lighting object using specially developed reflectors – offering almost limitless configuration possibilities.

REFLEX² Ceiling Cascade M / S

REFLEX² Ceiling M
+ Reflector Cascade M

REFLEX² Ceiling S
+ Reflector S

REFLEX² Cascade XL / M

REFLEX² Ceiling XL
+ Reflekctor Cascade XL

REFLEX² Ceiling M
+ Reflector M

REFLEX² Cascade XL / M / S

REFLEX² Ceiling XL
+ Reflector Cascade XL

REFLEX² Ceiling M
+ Reflector Cascade M

REFLEX² Ceiling S
+ Reflector S

Custom-made solutions

In addition to the standard sizes, project-specific adaptations are available. Custom dimensions, special colours and technical modifications can be realised on request.

serien.individual

Awards

REFLEX² Ceiling has received multiple international design awards. These accolades underline the combination of design clarity and technical excellence.



see Projects with REFLEX²

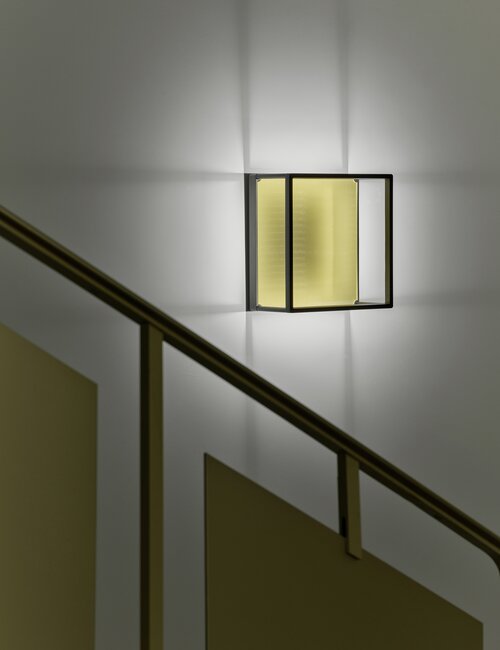

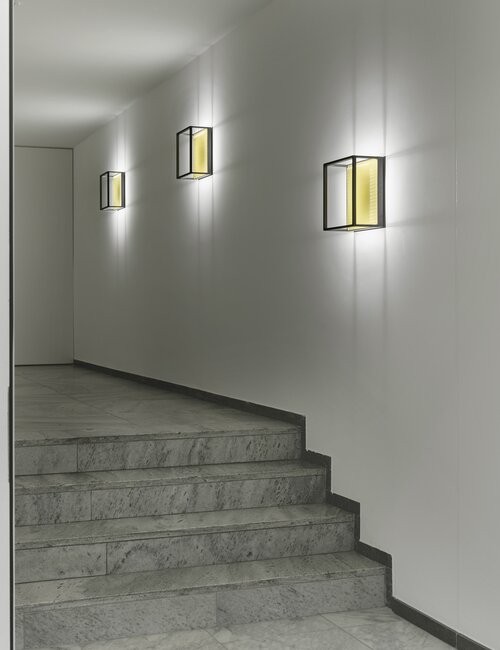

REFLEX² Wall
REFLEX² Table
REFLEX² Floor
REFLEX² product family
more Ceiling luminaires
Lighting design data in DIALux

Ceiling S 150

Ceiling S 200

Ceiling S 300

Ceiling S 450

Ceiling S 600

Ceiling M 150

Ceiling M 200

Ceiling M 300

Ceiling M 450

Ceiling M 600

Ceiling XL 200

Ceiling XL 300

Ceiling XL 500

Ceiling XL 1000

Sizes

  • S / M

Versions

  • schwarz
  • Pyramide weiß
  • Pyramide silber
  • Pyramide gold
  • matt weiß
  • weiß

housing

  • Black-coated aluminium, RAL 9005 matt

  • White-coated aluminium, RAL 9010 matt

lamp cover

  • Diffuser, white glass with a satin finish on one side

Light Color

  • 2700 K
  • 3000 K
  • TUNABLE WHITE 2200-5000 K
  • DIM2WARM 2200-3000 K

Color Rendering Index

  • Ra >90

Voltage

  • 230 V

Control

  • DALI
  • CASAMBI
  • Phase Dimming (TRIAC)

Power

  • 33 W, 40 W, 50 W

Protection Type

  • IP20

Protection Class

  • I

  • through-wiring - wiring space and electrical terminals prepared for series connections

  • Optional use in emergency lighting systems

  • Integration of a battery - for emergency lighting systems optional

  • sensor option

  • modular product – a system consisting of several functional units (light unit and lampshade) that can be flexibly configured to build the complete luminaire

  • serien.individual - customized specific solutions possible

Custom Solutions E, G

Ecodesign and Energy Labelling

  • Light source can be replaced by qualified technicians

  • Control unit can be replaced by qualified technicians

Data Sheets
data sheet REFLEX² Ceiling M 1.8 MB PDF
data sheet REFLEX² Ceiling S 2.5 MB PDF
Declarations of Conformity
REFLEX² 95.4 KB PDF
Owner's Manual
REFLEX² Ceiling M 1.1 MB PDF
REFLEX² Ceiling S 434.8 KB PDF
Photometric Data
REFLEX² 17.8 KB ZIP

REFLEX² Ceiling Variants

Typology
Size
Reflector
Length
Control
Power
cct
Luminous flux
Luminous flux
Model Control Connected load CCT Luminous flux Art. no.

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur weiß

40 W

 2700 K

RE2001

RE3001

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur silber

40 W

 2700 K

RE2001

RE3002

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur gold

40 W

 2700 K

RE2001

RE3003

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M Reflektormatt weiß

40 W

 2700 K

RE2001

RE3004

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur weiß

40 W

 2700 K

RE2001

RE3221

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur silber

40 W

 2700 K

RE2001

RE3222

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur gold

40 W

 2700 K

RE2001

RE3223

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M Reflektormatt weiß

40 W

 2700 K

RE2001

RE3224

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur weiß

40 W

 3000 K

RE2002

RE3001

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur silber

40 W

 3000 K

RE2002

RE3002

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur gold

40 W

 3000 K

RE2002

RE3003

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M Reflektormatt weiß

40 W

 3000 K

RE2002

RE3004

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur weiß

40 W

 3000 K

RE2002

RE3221

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur silber

40 W

 3000 K

RE2002

RE3222

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur gold

40 W

 3000 K

RE2002

RE3223

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M Reflektormatt weiß

40 W

 3000 K

RE2002

RE3224

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur weiß

DALI

50 W

 2700 K

RE2003

RE3001

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur silber

DALI

50 W

 2700 K

RE2003

RE3002

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur gold

DALI

50 W

 2700 K

RE2003

RE3003

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M Reflektormatt weiß

DALI

50 W

 2700 K

RE2003

RE3004

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur weiß

DALI

50 W

 2700 K

RE2003

RE3221

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur silber

DALI

50 W

 2700 K

RE2003

RE3222

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M ReflektorPyramidenstruktur gold

DALI

50 W

 2700 K

RE2003

RE3223

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling Cascade M Reflektormatt weiß

DALI

50 W

 2700 K

RE2003

RE3224

REFLEX² Ceiling M 150schwarz

REFLEX² Ceiling M ReflektorPyramidenstruktur weiß

CASAMBI

50 W

 2700 K

RE2003C

RE3001

Other luminaire types in this family

REFLEX²Floor
REFLEX²Table
REFLEX²Wall

Product Family

REFLEX²

REFLEX² Ceiling Projekte

Project
RESIDENTIAL
Harmonious new design in keeping with the architecture and interior
Project
OFFICE
Lighting solutions for F & R: new company headquarters efficiently illuminated
Project
EDUCATION

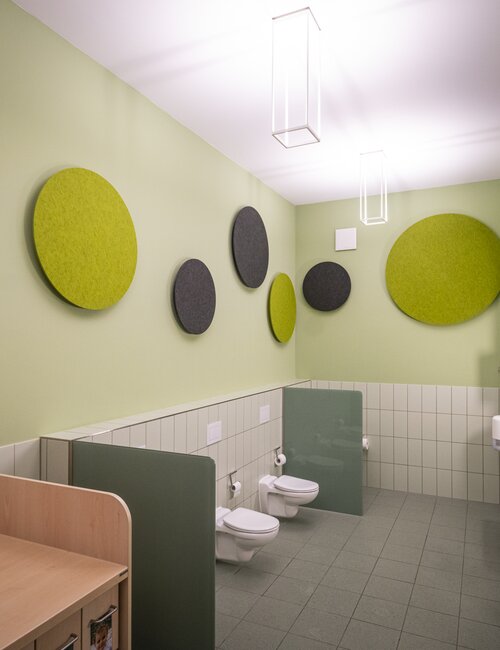

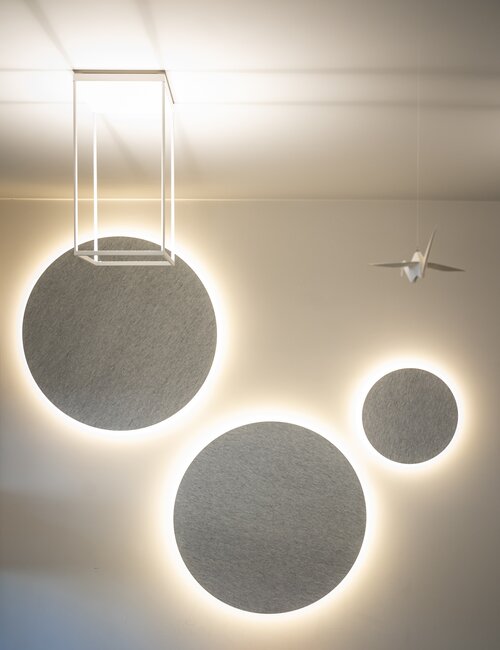

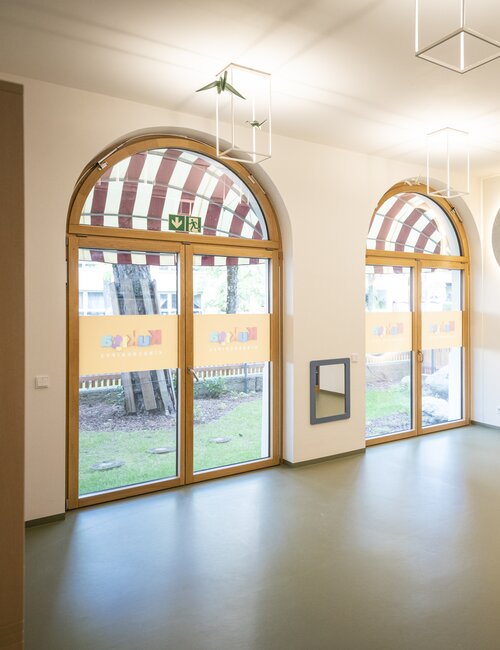

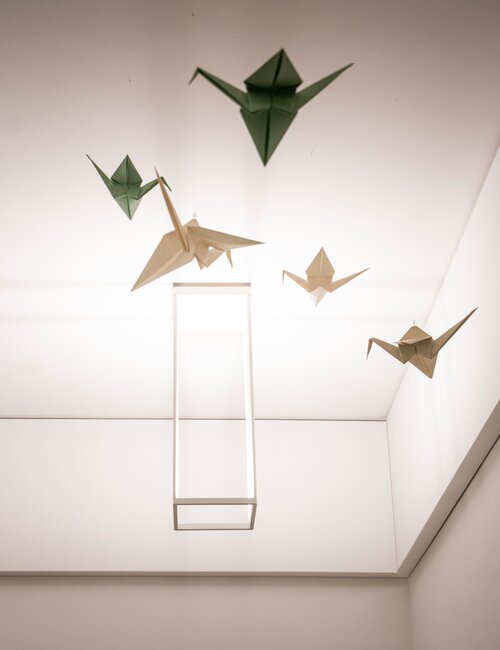

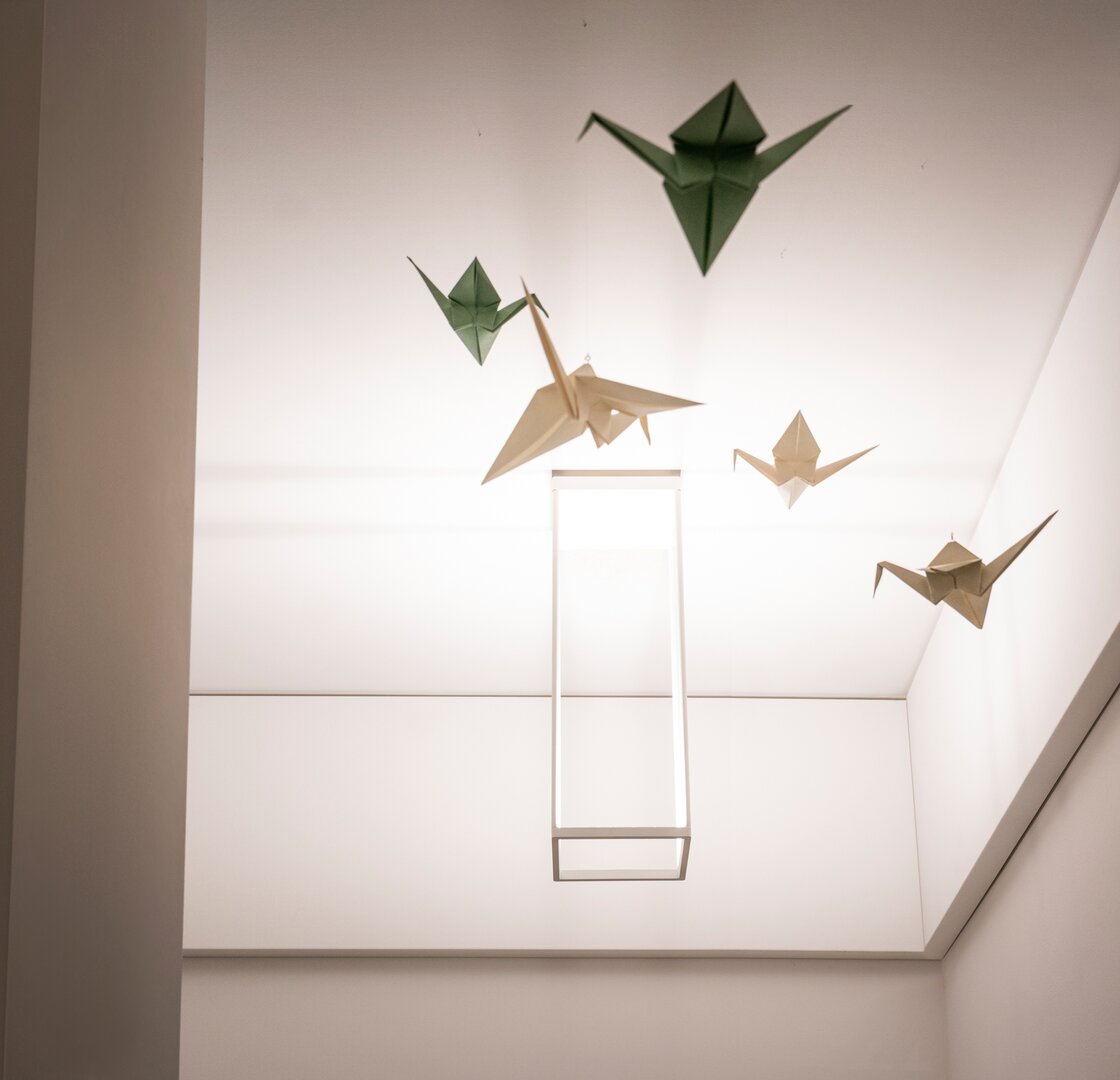

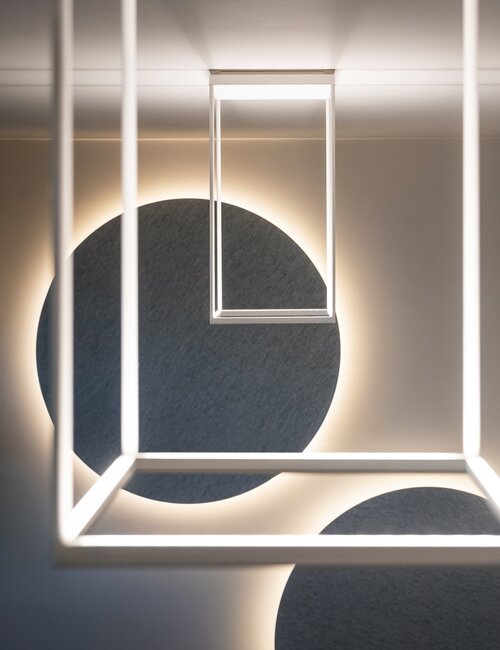

Intelligent lighting for the youngest
