SLICE²
Compact body.
Perfect light.
SLICE² further develops the successful SLICE with a view to technology, functionality and formal aesthetics. The completely closed luminaire head with its particularly innovative arrangement of illuminants on two levels creates an optimum light effect: Wide-angled upwards-facing LED strips provide indirect light that is entirely glare-free even at full power. Downwards, LEDs whose light is supplied via the glass edges and distributed by a prismatic disk generate ideal direct lighting for work surfaces.
This makes SLICE² a perfect lighting solution for all modern office requirements in terms of light output and glare elimination.
Design
Jean-Marc da Costa
Material
lamp head, tube and base: aluminium chrome-plated (except base), black, white or silver coated; lamp cover: below prism pattern acrylic glass, above diffusor acrylic glass
Light
beaming upwards through diffusor plate, downwards directed through prism pattern glass; light distribution LED: indirect 85%/direct 15%
Versions
SLICE² Floor
SLICE² Furniture
SLICE² with adapter for USM Haller table systems
Lamp
LED 82W (2x 41W)
3000K CRI Ra>80, 12710lm, EEC C
4000K CRI Ra>80, 13345lm, EEC C
Control
control integrated: on/off/dimming via button on luminaire head
control sensor: on/off/dimming via button on luminaire head and/or by
presence and brightness sensor in the luminaire head
Features
unified glare rating UGR<15; other technical versions (CCT/CRI/power) on request

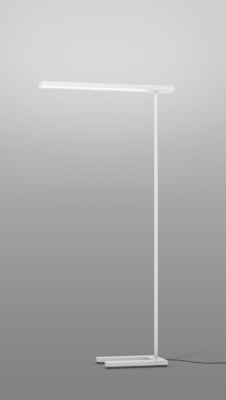

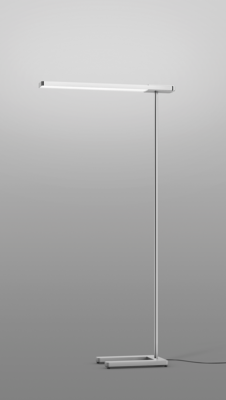

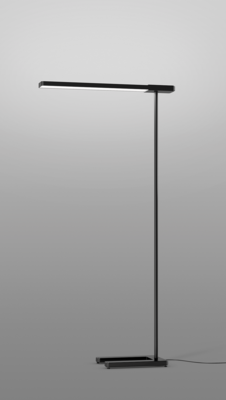

Slice² Floor
Slice² Furniture
SLICE² Furniture with Adapter
for USM Haller table systems
productfamily
3D DWG-Data
| SLICE² | ZIP | 275 KB |
Data sheets
| data sheet SLICE² Floor | 965 KB |
Declarations of Conformity
| SLICE² DOC | 96 KB |
Owner's Manual
| SLICE² Floor | 841 KB | |
| SLICE² Floor sensors | 2 MB | |
| SLICE² Furniture | 2 MB |
Photometric Data
| SLICE² Family | ZIP | 9 KB |
