CAVITY
Smooth curve.
Pleasant light.

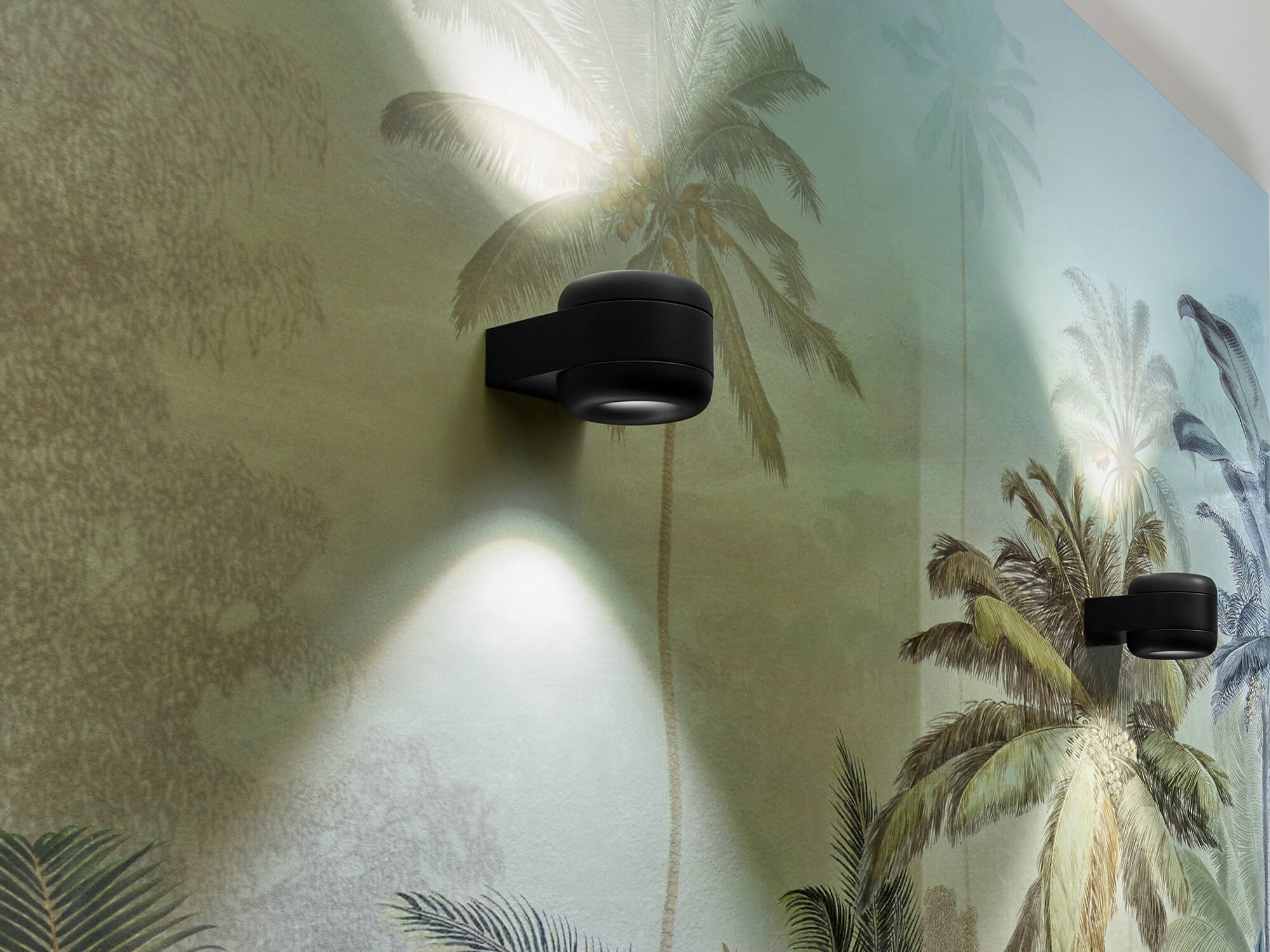

CAVITY Wall sets gentle light accents on the wall and extends the product family with a wall luminaire distributing light equally upwards and downwards. Specially designed, curved aluminum bodies and the recessed illuminant within allow the light to unfold freely, seemingly flowing outwards via the funnel-shaped form.
Different lighting tasks can be met uniformly by combining the wall luminaires with surface-mounted and recessed spotlights and the pendant luminaires of this product family.
design
da Costa & Wolf
product details
Wall
- LED wall light in size S
- control gear 19 W
- dimmable via phase dimming (TRIAC) or DALI
- plain or bicolour-combinations of 2 housing surfaces and 4 cover surfaces
- convenient quick mounting
surfaces
black
RAL 9005, powder coating matt
white
RAL 9010, powder coating matt
aluminium gloss finish
PVD coating, high-gloss metal vapour deposition
bronze finish
PVD coating, high-gloss metal vapour deposition
variants
materials
housing
aluminium housing with excellent thermal properties for optimal heat heat dissipation of the LED
optic
genuine glass lens with structured surface
lighting technology
2700 K or 3000 K
CRI ≥ 97
excellent colour reproduction quality
2 SDCM
very high colour consistency - minimal colour temperature differences (MacAdam Step 2)
LED glass lens for directional light
- beam angles S: 45° and L: 60°
- absolutely uniform illumination with soft light spot
product family
3D DWG-Data
| CAVITY DWG | ZIP | 2 MB |
Catalogue/Price lists
| Price list CAVITY german/international | 155 KB | |
| Price list CAVITY Switzerland | 150 KB |
Data sheets
| data sheet CAVITY Ceiling Recessed S L | 2 MB | |
| data sheet CAVITY Suspension | 818 KB | |
| data sheet CAVITY Wall | 647 KB |
Declarations of Conformity
| CAVITY DOC | 96 KB |
Owner's Manual
| CAVITY Ceiling | 682 KB | |
| CAVITY Recessed | 544 KB | |
| CAVITY Suspension | 812 KB | |
| CAVITY Wall | 257 KB |
Photometric Data
| CAVITY Family | ZIP | 9 KB |
