CAVITY
Smooth curve.
Pleasant light.

A specially designed, curved aluminum body replaces the reflector in spotlight CAVITY. The illuminant is recessed inside this body, whose shape allows the light to spread freely as it is seemingly sucked outwards over the body. The result is a downlight with a soft, glare-free luminescence that has a pleasant effect from all angles. It can be installed in all spaces where surfacemounted luminaires are to ensure a perfect and pleasant light effect.

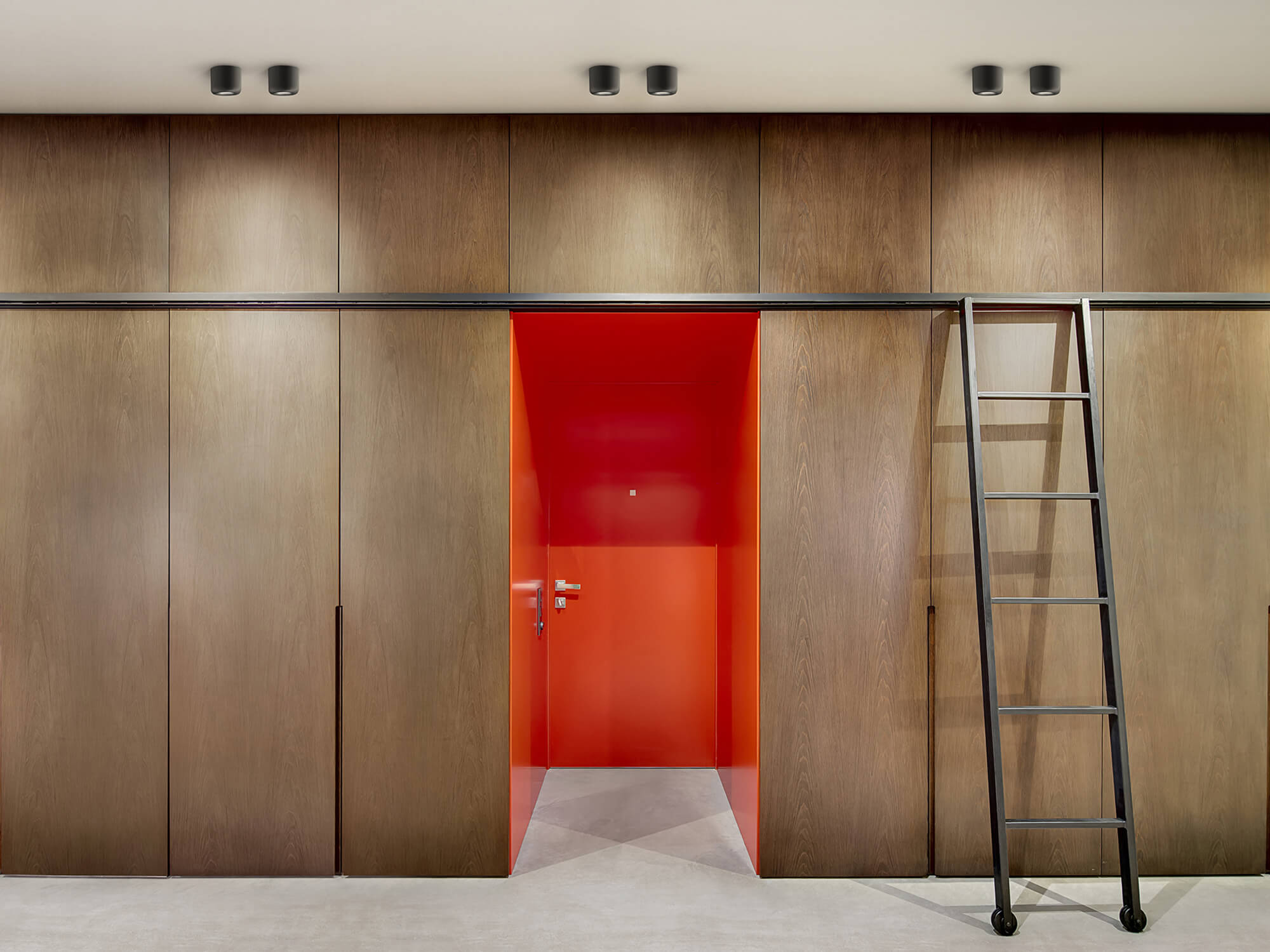

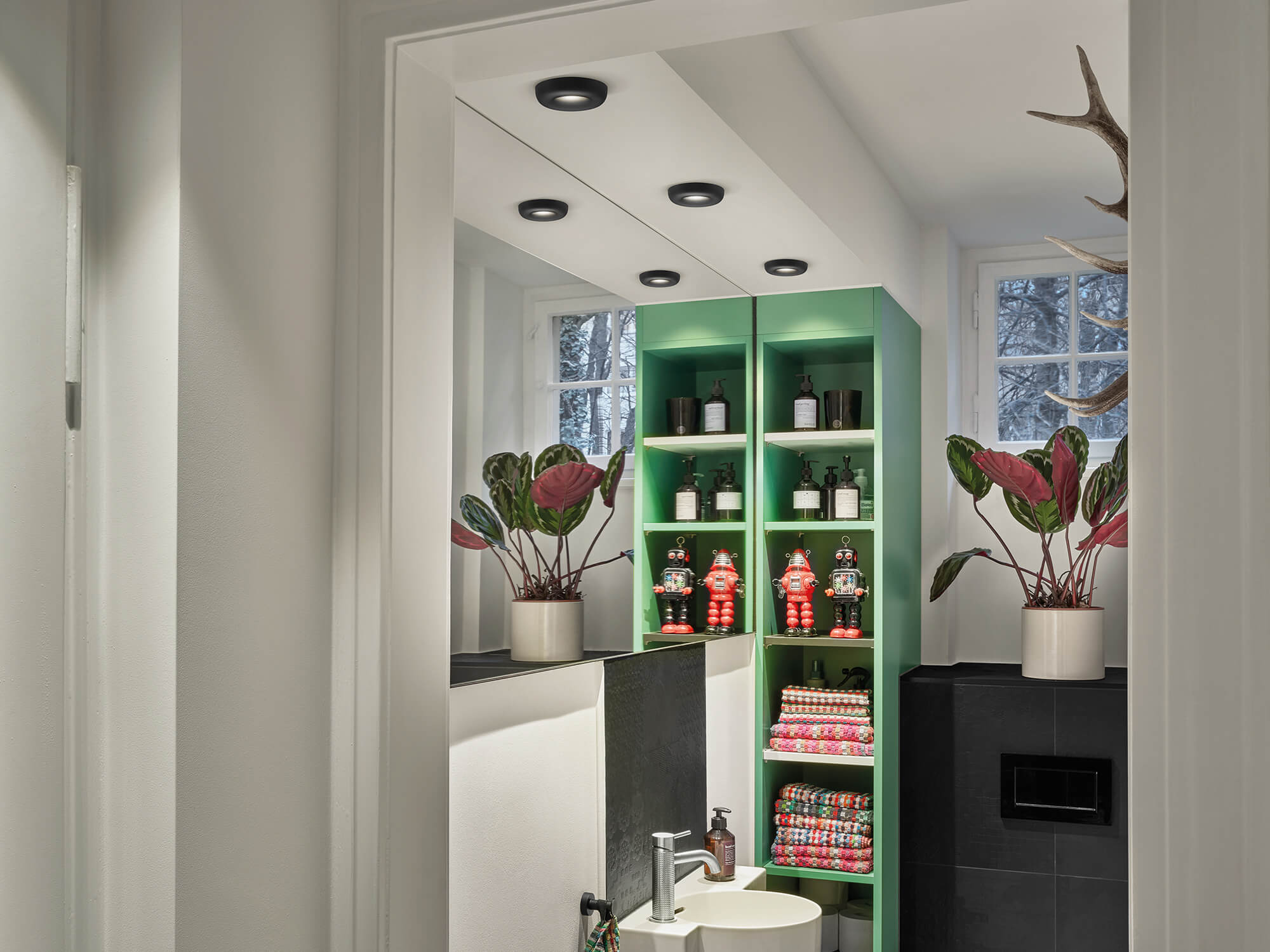

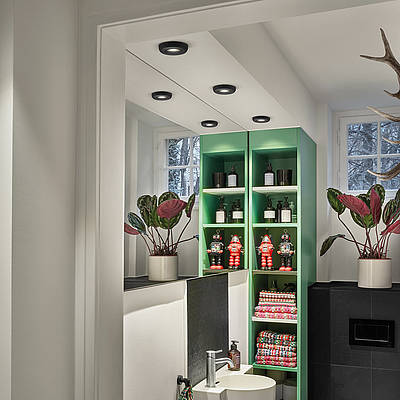

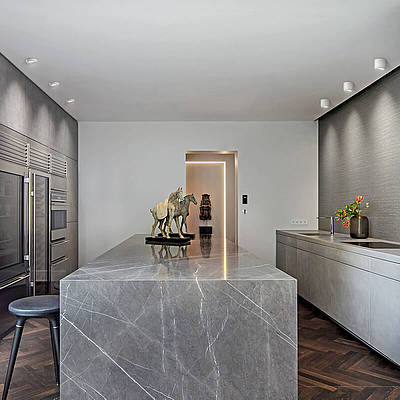

CAVITY can be installed in all spaces where surfacemounted luminaires are to ensure a perfect and pleasant light effect. On its own, grouped together or lined up, CAVITY integrates into ceilings and rooms or sets accents on walls or shelf areas.

Different lighting tasks can be met uniformly by combining the recessed and surfacemounted with the suspending varieties of this luminaire family in four finishes and two sizes, S (small) and L (large).





Design

da Costa & Wolf

Sizes

Ceiling S and L

Recessed S and L

Material

housing: aluminium coated

Versions

black

white

aluminium gloss finish

bronze finish

Light

directed downwards,
shielded to the sides

Features

housing tool-free mountable

Recessed S and L for installation in suspended ceilings require an installation space above the lower edge of
the ceiling of:
S/L TRIAC >45 mm
S DALI >85 mm
L DALI >65 mm

110 versions on request

Lamp

Ceiling S
LED 12 W
2700K CRI Ra>97, R9>90, 1220lm, EEC F
3000K CRI Ra>97, R9>90, 1280lm, EEC F

Recessed S
LED 10 W
2700K CRI Ra>97, R9>90, 1220lm, EEC F
3000K CRI Ra>97, R9>90, 1280lm, EEC F

Ceiling L, Recessed L
LED
20 W
2700K CRI Ra>97, R9>90, 2070lm, EEC F
3000K CRI Ra>97, R9>90, 2140lm, EEC F

other technical versions (CCT/CRI/power) on request

Control

Recessed S, Ceiling S
TRIAC

Recessed L, Ceiling L
TRIAC
DALI

Awards

German Design Award 2019: Winner





    CAVITY Recessed S, L

    CAVITY Ceiling S, L

    Data sheets

    data sheet CAVITY Ceiling Recessed S LPDF919 KB

    Declarations of Conformity

    CAVITY DOCPDF096 KB

    Energy-Efficiency Labels

    CAVITY EECZIP003 MB

    Owner's Manual

    CAVITY CeilingPDF682 KB
    CAVITY RecessedPDF544 KB

    Photometric Data

    CAVITY FamilyZIP009 KB
